Pravin Electronics & Electricals

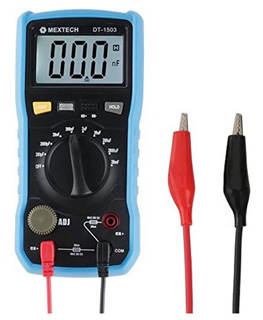

Mextech DT1503 Capacitance Meter
| Power Source | 9VOLT BATTERY |
| Model Name/Number | DT-1503 |
| Usage/Application | factories, Laboratories, Schools & Research Institutes and other Use |
| Warranty | ONE YEAR |
This is a 3½ Digits Digital Capacitance Meter. Suitable for factories, Laboratories, Schools & Research Institutes and other Use.
| RANGE | REVOLUTION | ACCURACY |
| 200pF | 0.1pF | ±0.5% |
| 2000pF | 1pF | |
| 20nF | 10pF | |
| 200nF | 100pF | |
| 2 µ F | 1000pF | |
| 20 µ F | 0.01 µ F | |
| 200 µ F | 0.1 µ F | |
| 2000 µ F | 1 µ F | ±1% |
| 20m F | 10 µ F | ±2% |
- Display: 3 ½ Digits.
- Four Measuring Units : pf, nf, µ F, mf
- Low Battery Indication,
- Data Hold Function.
- Fuse Protection.
- Zero Adjustment knob for all Ranges.
- Backlight (Automatic Shutdown after 10 Seconds)
- Power Supply: 1x9 Volt Battery.
- Display Size : 64 X 35 mm.
- Unit Size : 185 X 90 X 53 mm.
Accessories: Instruction Manual, One Set Test Leads, 1pc 9V Battery.
