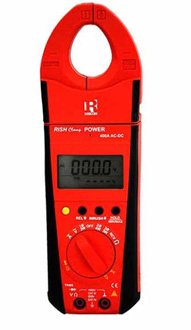

RISH Clamp Power 400A AC/DC

Applications
  • RISH Clamp POWER 400A measures, calculate and displays important electrical parameters of single phase or three phase power system. It also features Resistance, continuity, diode and non contact voltage detection.
Brand Rishabh
Warranty 1 Year
Relative Humidity 45%-55% RH
Data Hold Yes
Model No 1000A AC-DC
Measuring Range 30.00 mV
Reference Temperature 23 deg C +/- 2K
Input Frequency 50 or 60 Hz +/-2%
Battery Voltage 8 V +/- 0.1 V
Number of Digits 3 3/4 digits.
Maximum Count 3100 counts
Product Features

Measures following parameters

  • AC & DC Voltageupto1000V
  • AC & DC Current upto 1000A/400 A
  • Inrush/Peak Value Measurement
  • Active, Reactive andApparentPower
  • Horse Power Measurement
  • kWh
  • Measure up to49th Harmonics
  • Phase Angle
  • THD
  • DF
  • Power Factor
  • Crest Factor
  • LPF Mode forVFDApplication
Unique Design

RISH Clamp POWER1000A/400A is a highly innovative design for features those increasessafety and comfort of user.

  • Rotating clamp jaws facilitate the measurement at physically awkward positions, vertical bus bars, conductors placed at positions difficult to access.
  • Clamp jaws can be opened or closed with the trigger placed at bottom side away from the jaws. This allows the user to place his/her hand at safer distance from live conductor. This greatly reduces exposure of human beings to electrical shocks.
  • Location and design of trigger eliminates fatigues caused by single finger operation. It allows spreading the force required to open the jaws over more than one finger to ensure comfortable operation.
  • Comfortable operation of push buttons and function selector switch, in adverse field conditions.
Large Jaw Opening
  • Jaw opening of 51mm and 41 mm for standard wire diameter of 50mm and 40mm for 1000A and 400Arespectively.
Inrush Current Measurement
  • Clamp meter will be triggered by inrush current >5A. Inrush current for 100 msec is measured.
DATA Hold Function
  • By pressing DATA HOLD button, reading on the display can be latched for Hands free operation.
MIN,MAX Function
  • By pressing MIN/MAX button, the clamp meter will start recording latest Minimum and Maximum readings.
Backlit
  • It is possible to conduct measurement using the clamp meter during poor light condition with the help of bright white lightBacklit.
Non Contact Voltage Detection
  • The clamp meter can detect the presence of AC Voltage between 100 to 1000 V 50hz/60Hz without any electrical connection and give acoustic signal as an indication.
Three Phase Power Measurement
  • Clamp meter can measure power in 3 phase 3 wire or 3 phase 4 wire (Symmetric as well as Asymmetric) network without any manual calculation like other clamp meters.
Dual Display
  • User friendly dual display shows the simultaneous parameters of measuring input quantity.
LPF Mode
  • LPF mode is available for voltage and current for true measurement of VFDApplication.
TRMS Measurement
  • In order to calculate true value of distorted waveform due to presence of high crest factor or harmonics, TRMS measurements is done forAC voltage and current.
Auto Power OFF
  • In order to save the power of the Batteries, the clamp meter will automatically shut OFF if it detects no activity for 10 minutes.
