Pravin Electronics & Electricals

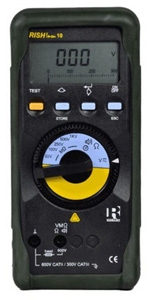

Rish Insu 10 Continuity Tester

Rish Insu 10 Continuity Tester
Product Catalogue

Applications :
RISH Insu10 Analog-Digital Insulation and Continuity Tester is suitable for following Measurement of the insulation resistance on electrically dead equipment and systems with test voltages up to 1000V. For testing motors, transformers, generators, switchgears. For testing of house hold appliances. Measurement of the insulation resistance of cables. Very useful for on-site maintenance and service departments.

Brand Rishabh
Weight 500 gm
Ip Rating IP 50
Scale Length 47 mm
Operating Temperature -20 deg C+40 deg C
Model No Rish Insu-10
Battery 6 x 1.5 V cells IEC LR6
Temperature Coefficient Less Than 0.1% per deg C
Storage Temperature -25 deg C+65 deg C
Relative Humidity 90% RH at 40 deg C max
Display LCD
Dimensions 84 x 195 x 35 mm
Features
  • Test Voltages 50V/ 100V/ 250V/ 500V/ 1000V: Test voltages from 50V to 1000V can be selected for Insulation Resistance measurement. It covers all insulation tests up to 1000V.
  • Insulation Resistance Measurement: The instrument is capable of measuring insulation resistance from 10 K ...999 M.
  • Hands-free continuity testing: Continuity testing (0-10 with acoustic signal) can be done without pressing the test button. In addition to the display function, an acoustic signal can be activated which sounds if the adjustable limit value is violated.
  • Voltmeter: Instrument measures voltages > 25V ... 600 V AC/DC.
  • Automatic discharge for capacitive circuits after test measurement: Capacitive devices under test, such as cables and windings, that get charged during the test, are discharged by the tester.
  • Live circuit detection: Displays presence of voltages >25V irrespective of function selected.
  • Pre-selectable measurement time for Insulation Resistance Measurement: In normal course, the insulation test terminates and the measured insulation resistance value remains on display for 2 sec after the test key is released. With the Pre-selectable measurement time feature, the insulation test continues and the measured value remains on the display for the pre-determined time. Pre-selectable time: 10 sec - 5 min.
  • Pre-selectable limit checks (Go/ No-go option) for M: An acoustic signal can be generated when the measured value of insulation resistance falls below an adjustable limit value.
  • Lead resistance null facility: The instrument provides a facility to compensate the resistance of the leads for an accurate measurement of low resistance.
  • Storage of MIN/MAX values: In addition to the display of the actual measured value, the minimum or maximum value can constantly be updated or stored.
  • Storage Memory for last 50 readings: The instrument provides a facility to store and recall 10 values in each of the 5 ranges of insulation resistance measurement.
  • Blown fuse indication: The display FUSE points to a blown fuse.
  • Low battery indication: Automatic display of the Symbol " " when battery cells are exhausted.
  • Stop Watch: This function allows you to measure elapsed time up to 1 hour.
  • Auto-power off function: The instrument turns off automatically, if any of the keys or the selector switch have not been activated for about 10 minutes in insulation range and 5 minutes in other ranges or can be switched to continuous operation.
  • Protective holster for rough duty: A holster of soft rubber with tilt stand protects the meter against damage in the case of shock and drop.
