Product Catalogue

• Direct and alternating voltages from 100µV ... 1000V
• Direct and alternating currents from 10µA ... 10.00A
• Resistance from 1Ω ... 40.00M with zero correction
• Capacitance from 1pF ... 200.00 ¿¿¿F with zero correction
• Frequencies from 10.00Hz ... 500kHz
• Frequencies from 10.00Hz ... 500kHz
• Diode measurement and continuity testing
• Hold measurement
• Relative measurement
• Duty cycle (%) measurement
• Temperature measurement with K type Thermocouple
• Backlit Facility

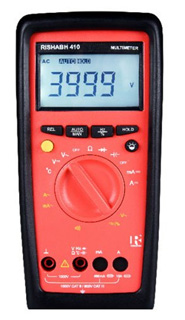

RISHABH 410 digital multimeter is suited for universal, general applications in the electrical and electronics fields, as well as in radio and television service, training and education. It is of especially pocket size design, and thus fit into pocket. The protective cover, which is provided as standard equipment, can be opened at an angle for convenient reading from the workbench, and

• Hold : By pressing the HOLD key, the currently displayed measurement value can be held and "HOLD" is simultaneously displayed.
• Relative measurement (REL): By pressing the REL key, the zero correction is made and Relative Value is measured. All functions can measure Relative Value except Hz/Duty.
• Automatic/manual measuring range selection: The measurement functions are chosen with the rotary selector switch. The measuring range is automatically adjusted to the measurement value. The measuring range can also be manually selected with the AUTO/MAN button. 0 Note : For Temperature ( C ) , Frequency ( Hz ) , Duty cycle ( % ), and Capacitance ( F ) measuring range is AUTO . No Manual range selection is possible
• Hz/Duty: The instrument can measure frequency (Hz) and duty cycle (%) of the AC Voltage by pressing Hz/Duty key.
• Temperature Measurement: RISHABH 410 allows you to measure temperature with " K " type 0 0 Thermocouple (Ni Cr-Ni) sensor in the range from 0 C to +1300 C.
• Diode and continuity testing: This provides for the testing of the polarity of diodes, as well as inspection for short-circuits and circuit interruptions. In addition to the display, resistance of less than approx 55 ± 2.5 are indicated with an acoustic signal
• Overload warning: An acoustic signal occurs when measuring AC voltage>750V, DC Voltage>1000V, AC/DC mA current>400.0mA, AC/DC current>10.00A
• Energy saving circuit (Auto Power Off): The instrument is switched off automatically, if none of the operating elements have been activated for about 15 minutes.
• Protective cover for rough operating conditions: A protective cover of Rubber Holster with a built-in stand protects the instrument against jolts and falls. It also secures the test probe for onehand operation, and allows for winding of the measurement cable which provides protection during transport.
• Automatic blocking socket(ABS): The automatic terminal blocking system prevents incorrect connection of test lead and incorrect selection of measurement quantity, which provide safety to the user.
• Backlit: The RISHABH 410 multimeter provides facility of measurement in poor light condition by pressing backlit key
• Calibration: RISHABH 410 multimeters are calibrated using precision calibrators having accuracy better than at least 5 to 10 times depends upon the functions and ranges. These sources are calibrated at regular intervals.
• Others: Separate compartment for batteries which makes battery replacement easy and faster. Also it has provision of mounting clip for hands free operation in awkward situation.
