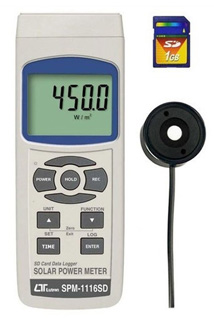

SPM-1116SD Lutron Solar Power Meter

Display Size 52 mm x 38 mm
Weight 346 g
Spectral Response 400 to 1100 nm
Display LCD
LCD Size 52 mm x 38 mm
Circuit Custom one-chip of microprocessor LSI curcuit
Display Type LCD with green backlight
Memory Card SD memory card. 1 G to 16 G.
Sampling Time of Display Approx. 1 second.
Power Supply DC 1.5 V
Operating Temperature 0 to 50 deg C
Operating Humidity Less than 85% R.H.
Dimension 182 x 73 x 47.5 mm
Features
  • 3 functions : Solar power, Power integration, Transmission.
  • Wide spectral range
  • Excellent long term stability.
  • Select either W/m^2 or Btu / (ft^2xh) power units
  • Cosine corrected.
  • Separate probe, easy for operation of different measurement environment.
  • Both meter and probe are built the Tripod Fix Nut, easy installation
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
  • Manual datalogger is available ( set the sampling time to 0 ) , during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, thenf user can make the further data or graphic analysis by themselves.
  • SD card capacity : 1 GB to 16 GB.
  • LCD with green light backlight, easy reading.
  • Can default auto power off or manual power off.
  • Data hold, record max. and min. reading.
  • Microcomputer circuit, high accuracy.
  • Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
  • RS232/USB PC computer interface.
  • Patented.

Application :
Meteorology agriculture solar radiation measurement solar power research physics and optical laboratories solar transmission measurement identify high performance windows.
