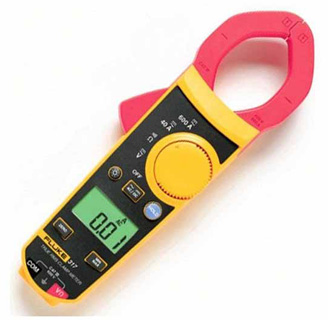

Fluke 317 Clamp Meter

Fluke 317 Clamp Meter
Product Catalogue

The new Fluke 317 clamp meter is designed based on detailed research into the specific requirements of electrical engineers. The small clamp meter head and lightweight, compact body make it ideal for use in confined spaces. The 40A range low current measurement (0.01A resolution) design is unique and allows users to accurately measure small currents. At the same time, the clamp meter also has functions such as accurate, True RMS measurements, maximum/minimum values, zeroing, background light display, display protection and is a powerful tool in carrying out daily maintenance and installations.

Brand Fluke
Operating Temperature -10 deg C to 50 deg C (14 deg F to 122 deg F)
Weight 384 gm
Model No Fluke 317
AC Current Range 40.00 A,600.0 A
AC Current Resolution 0.01 A,0.1 A
DC Current Range 40.00 A,600.0 A
DC Current Resolution 0.01 A,0.1 A
DC Current Accuracy 1.6 % +/- 6 digit [40 A],1.5 % +/- 5 digit [600 A]
AC Voltage Range 600.0 V
AC Voltage Resolution 0.1 V
AC Voltage Accuracy 1.5 % +/- 5 digit (20-500 Hz)
IP Rating IP40
Dimensions 234 x 74 x 34.8 mm
Jaw Diameter 37 mm
Functionality
  • The unique new features* of the 40 milli-amps measurement High-precision current measurement--0.01A
  • High-resolution, 1.6% high-precision measurements. (many engineers take small measurements more often than large current measurements)
  • 6000 count display
  • 4000 Ω resistance measurement
  • Continuity testing ≤ 30 Ω
  • Clamp opening: 37mm
  • The new clamp head is narrow and the body is compact and portable, making it ideal for use in confined spaces
  • Alternating/ current (AC)/direct current (DC) testing
  • Min/Max (minimum value / maximum value) feature on both current and voltage modes
  • New zeroing feature* - sets the display to zero to perform (DC) testing
  • True RMS
  • Large back light screen, convenient viewing
  • Screen 'Hold' function to hold measurement results on the screen
  • Automatic off function prolongs battery life and ensures the instrument's continued availability.
