Pravin Electronics & Electricals

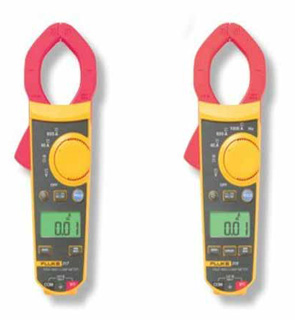

Fluke 319 True RMS Clamp Meters

Functions
  • 40 milli-amps measurement, highly accurate current testing: 0.01 A resolution, 1.6% precision measurements. (Many engineers measure low currents more often than high currents.)
  • Thin jaws and small, light body mean the meters are more suitable for use in confined spaces.
  • Inrush measurement technology allows measurement of starting current for devices such as motors and lightning equipment; integration time is 100 ms (Fluke 319 only).
  • Frequency measurements enable accurate measurement of PWM output signal frequency (Fluke 319 only).
  • Zero: Can display zero for direct current (DC) measurement.
  • Min/max function file suitable for current and voltage
  • RMS
  • 6000 digit display
  • Large backlit display for viewing
  • 4000 Ω resistance measuring span
  • Screen save function can save measurement results on the screen.
Brand Fluke
Weight 384 gm
Model No Fluke 319
Power supply 3x AAA IEC LR03 batteries
Max Jaw Opening 37 mm
Jaw Diameter 37 mm
Dimensions 234 x 74 x 34.8 mm
IP Equivalent IP40
Working Temperature -10 deg C to 50 deg C (14 deg F to 122 deg F)
Storage Temperature -40 deg C to 60 deg C (-40 deg F to 140 deg C)
AC Current Measurement 40.00 A,600.0 A,1000 A
AC Current Resolution 0.01 A,0.1 A,1 A
DC Current Range 40.00 A,600.0 A,1000 A
DC Current Resolution 0.01 A,0.1 A,1 A
