1000 A ac and dc current measurement with fixed jaw
2500 A ac current measurement with iFlex™ flexible current probe
1000 V ac and dc voltage measurement
True-rms ac voltage and current for accurate measurements on non-linear signals
Frequency measurement to 500 Hz with both jaw and iFlex™
60 kΩ resistance measurement with continuity detection
Min, max, average and inrush recording to capture variations automatically
500 mV dc measurement range to interface with other accessories
1000 µF capacitance measurement.
Features

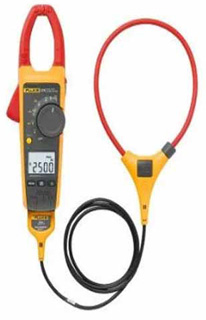

iFlex™ flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
CAT IV 600 V, CAT III 1000 V safety rating
Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings.
Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
Ergonomic design fits in your hand and can be used while wearing personal protective equipment
Large, easy to read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement
