Pravin Electronics & Electricals

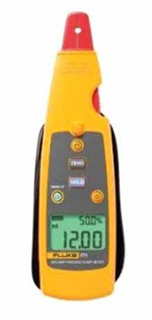

Fluke 771 Ma Process Clamp Meter

Brand Fluke
Operating Temperature -10 deg C to 55 deg C
Operating Altitude 0 m to 2000 m
Weight 260 gm
Model No Fluke 771
Diameter of Measurable Conductor 0.177 in or 4.5 mm max
Storage Temperature -25 deg C to 70 deg C
Operating Humidity Less Than 95 % @ Less Than 30 deg C,
Less Than 75 % @ 30 deg C to 55 deg C
IP Rating IP 40
Size 59 x 38 x 212 mm
Features include
  • Measure mA signals for PLC and control system analog I/O
  • Measure 4 to 20 mA output signals from transmitters without breaking the loop
  • Best in class 0.2 % accuracy
  • Resolution and sensitivity to 0.01 mA
  • Hold function captures and displays changing measurements
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement Spotlight illuminates hard to see wires in dark enclosures
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatic battery savings features
  • Power, 15 minutes automatic power down
  • Backlight, 2 minutes, automatic off
  • Spotlight, 2 minutes, automatic off
