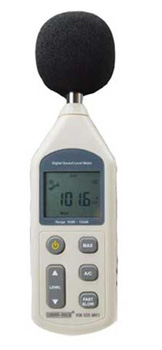

Kusum Meco KM 928 MK1 Digital Sound Level Meter
Features
- Measuring Range : 30 ~ 130 dBA, 35 ~ 130 dBC
- Accuracy : ± 1.5dB
- Resolution : 0.1 dB
- AC Output : 0.707Vrms at FS output impedance aprox. 600 ohm
- DC Output : 10mV / dB, output impedance approx. 100 ohm
- Bar Graph : 50dB scale at 1dB step for monitoring current sound pressure level display sample rate : 20 times / second
- AC & DC output for frequency analyser level recorder, FFT analyser, Graphic recorder etc.
- Display : 4 Digit display
- Frequency Response : 31.5Hz ~ 8.5KHz
- Measuring Level : 30 ~ 130, 40 ~ 90, 50 ~ 100, 60 ~ 110, 80 ~ 130
- Frequency weighting : A & C
- Time Weighting : FAST / SLOW
- Sampling rate : 2 times / second
- Microphone : ½ inch polarization capacitance microphone
- AC / DC output
- Max reading
- Overload indication : OVER / UNDER
- Low battery indication
- Power Supply : 4 x 1.5V AA or DC 6V 100mA adapter
- Dimension : 70 x 35 x 256 mm
- Weight : Approx. 308g (including battery)
- Accessories : User Manual, battery, Tripod mounting screw, Windscreen & Carrying case.
Sound Level Meter has been designed to meet the measurement requirement of noise engineers, noise quality control & health prevention in various environments, such as noise measurement in factory, Office, Traffic Road, Family & all other noise measurement applications.
