Pravin Electronics & Electricals

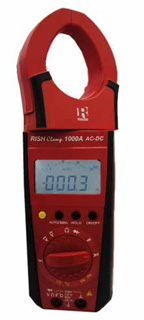

RISH Clamp 1000A AC/DC

RISH Clamp 1000A AC/DC
Product Catalogue
Product Features

Rish Clamp 1000A is a highly innovative design for features those increases safety and comfort of user.

  • Rotating clamp jaws facilitate the measurement at physically awkward positions, vertical bus bars, conductors placed at positions difficult to access.
  • Clamp jaws can be opened or closed with the trigger placed at bottom side away from the jaws. This allows the user to place his/her hand at safer distance from live conductor. This greatly reduces exposure of human beings to electrical shocks
  • ocation and design of trigger eliminates fatigues caused by single finger operation. It allows spreading the force required to open the jaws over more than one finger to ensure comfortable operation.
  • Comfortable operation of push buttons and function selector switch, in adverse field conditions.
Brand Rishabh
Warranty 1 Year
Relative Humidity 45%-55% RH
Data Hold Yes
Model No 1000A AC-DC
Measuring Range 30.00 mV
Reference Temperature 23 deg C +/- 2K
Input Frequency 50 or 60 Hz +/-2%
Battery Voltage 8 V +/- 0.1 V
Number of Digits 3 3/4 digits.
Maximum Count 3100 counts
Applications
  • RISH Clamp 1000A measures important electrical parameters like AC Current (TRMS), DC Current, AC Voltage(TRMS), and DC Voltage. It also features Capacitance, Ohm & Continuity, frequency, and Duty cycle and temperature measurement.
Large Jaw Opening

For RISH CLAMP 1000A AC-DC Jaw opening of 51mm for standard wire diameter of 50mm and for RISH CLAMP.

Narrow Body
  • Narrow housing for firm grip and easy to carry.
High Accuracy for low current measurement
  • The clamp meter can measure accurately at not only the High currents but also Low current ranges.
True Root Mean Square (TRMS) measurement
  • Clamp meter measures AC signal's root-mean-square value accurately irrespective of the shape of input waveform.
Measurement on Variable Frequency Drives
  • The clamp meter can measure accurately on variable frequency drives (VFD) and UPS.
User selectable Backlit (Optional)
  • It is possible to conduct measurement using the clamp meter during night time in darkness with the help of Backlit. The back lit can be switched ON or OFF by pressing a single key.
Temperature measurement
  • Temperatures from -200 to 800 °C using Pt 100 and Pt 1000 sensors.
Auto Power OFF
  • In order to save the power of the Batteries, the clamp meter will automatically shut OFF if it detects no activity for 10 minutes.
Analog Scale
  • Analog scale that updates at the rate 20 times/sec to observe fluctuations in input.
